MIL-DTL-81963 Servocomponents, Precision Instrument, Rotating, Common Requirements And Tests, General Specification ForThis specification covers common requirements and tests for analog, digital and analog/digital precision instrument rotating servocomponents \(synchros, electrical resolvers, electrical, linear resolvers, transolvers, shaft angle encoders, servomotors, tachometer-generators, servomotor-tachometer generators, stepping motors, and gear heads\). This specification will be used with the applicable general specification, which covers a particular class of servocomponents \(for example, synchros\), together with the documents and the specification sheet that cite MIL-DTL-81963 as a direct reference detailing the specific requirement for the individual servocomponent.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 18 - 19

MIL-DTL-81963C

NOTES:

1. Dimensions are in inches and minimum size as shown. Metric equivalents are given for general

information only.

2. Lettering � Gothic or futura type capitals without series.

3. Legend shall be centrally located, both horizontally and vertically.

4. Nomenclature, PIN, voltage, and frequency shall be as specified in the applicable general

specification.

FIGURE 2. Standard marking - Continued.

.75

.187 � .005

6.00

.38

B/2

�A

.187

6.00

+ +

B/2

3.00

SEE NOTE 3

SEE NOTE 5

BASE

PLATE

MATERIAL: ALUMINUM ALLOY,

MATERIAL: LAMINATE PHENOLIC

ASTM 209

FINISH: ANODIZE PER MIL-A-8625,

TYPE II, CLASS 2 BLACK

Table of lettered dimensions

Size

A (mm)

B � .010

(mm � 0.254))

0.376 (9.55)

2.214 (56.24)

0.501 (12.73)

2.439 (61.95)

1.001 (25.43)

3.200 (81.28)

1.313 (33.35)

4.300 (109.22)

1.563 (39.70)

5.250 (133.35)

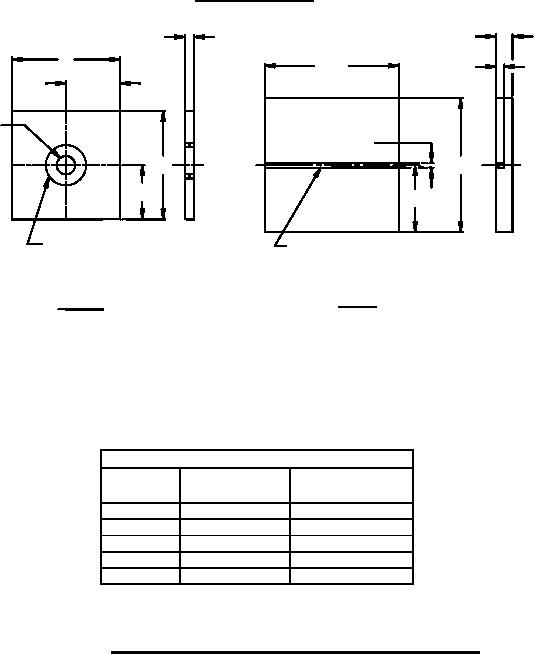

FIGURE 3. Standard test fixture for servocomponents up to size 18.
