MIL-DTL-81963C

C = Standard Capacitor

G = Standard Resistor

(Values of C and G will be determined by the frequency "F" of the generator (GEN) voltage.)

Rectangular Impedance is R + JXL with R read directly from Dial "R" and the XL calculated from

XL = 2 š FL with the L read directly from Dial "L".

Polar Impedance is Z at an angle of X. The angle derived from Tan Φ = R / XL

Z derived from Z = √ R + XL

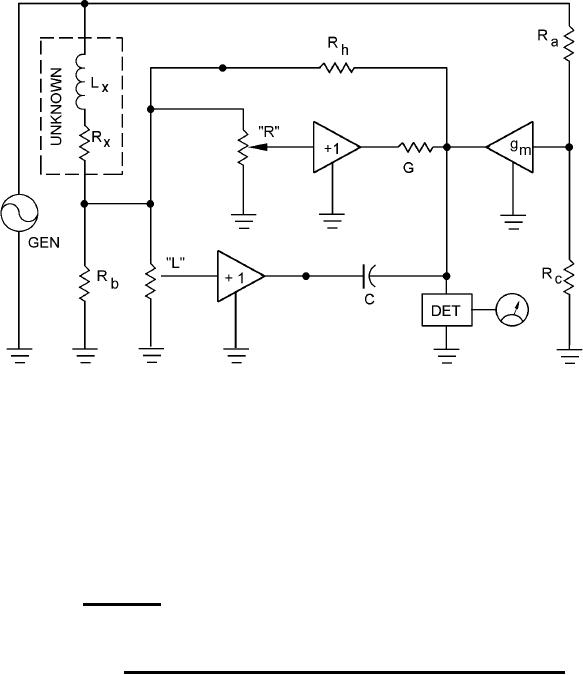

FIGURE 11. Elementary schematic diagram for an incremental induction bridge.
